Legacy ALX2

$33,495.00 incl gst

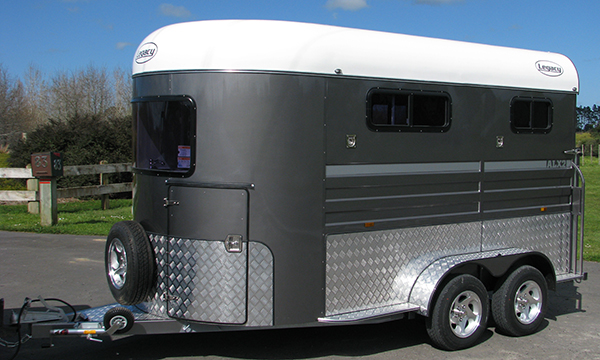

Legacy ALX2

One of the most popular angle load floats on the market. Comes complete with all of those extras you wish for all built into the price. From seating, storage, padding and water.  Many use this model as an "overnighter" by installing a few extras like hot water and gas hobs.

Legacy ALX2 Standard Features Include:

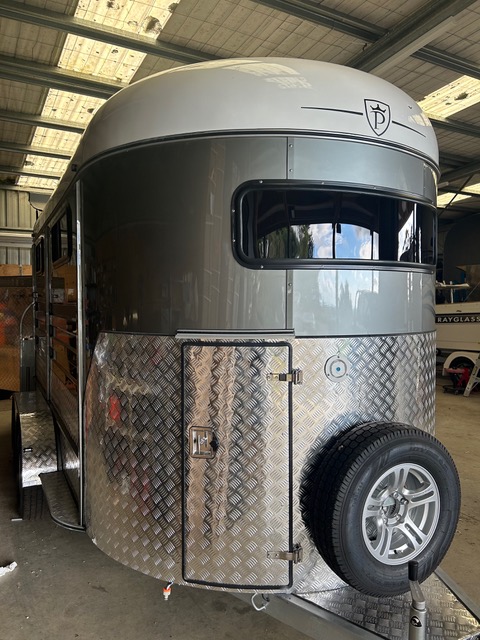

The outside story:
  • Full aluminium body kit – stone chip protection all around
  • One piece hot dipped galvanised chassis
  • Galvanised steel frame and 2mm Aluminium side panels
  • PPG Paint
  • Axles are made from 50mm solid steel bar
  • Equalising suspension for load sharing on uneven terrain
  • 14 x lubrication points on suspension pins and ramp hinges
  • Extra wide wheel base allows greater stability and smoother travelling
  • Solid mudguards able to be used as mounting block
  • Rear dust door enabling float to be fully locked
  • Alloy wheels for a more stylish finish
  • Heavy duty commercial grade 195 x 14 8 ply tyres
  • 100x 50mm drawbar with aluminium checker plate infill
  • Jockey wheel – heavy duty, largest made in NZ
  • Emergency break-away unit
  • 4 wheel electric brakes with fitted proportional brake controller - no vehicle modification needed
  • LED lights including 6 side marker lights, high stop and tail light
  • Twin pop up vents
  • External tack cupbpard
  • Insulated roof
  • Extra wide loading ramp with rubber matting and cleats
  • Gas struts on ramp for easy lifting
  • Stainless steel latches, 4 horse tie-ups and fittings
  • Sliding side windows with insect mesh
  • Offset pedestrian door with latch to hold back
  • 60 litre water tank with outside tap
  • Available in any colour choice

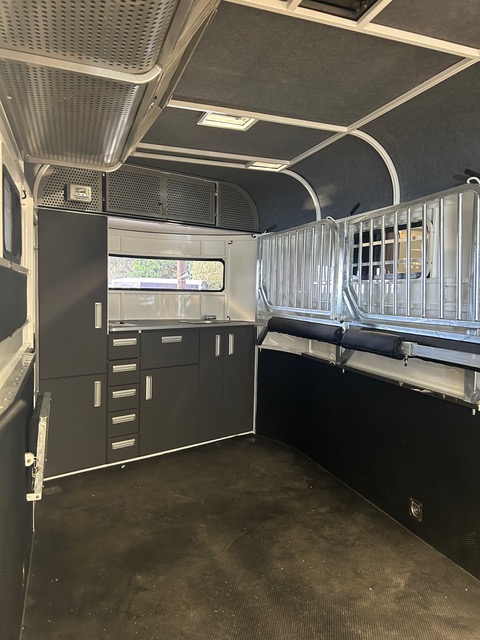

The inside story:
  • Full rubber fit out – floor and walls
  • Full padding
  • Fold up padded seat
  • Flooring Holypan Fibreglass with 10mm sealed rubber overlay (will never rot)
  • Removable hot dipped galvanised dividers and head guards
  • Completely removable centre bar for carrying hay/furniture
  • High and low horse tie-ups

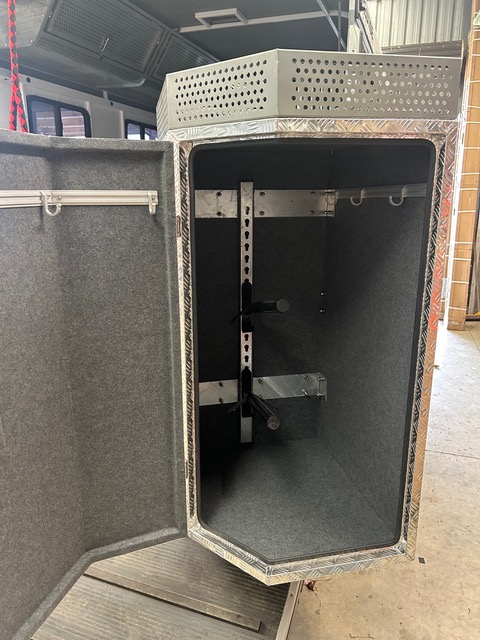

  • 2 saddle swing-out tackbox - can be upgraded to 3 or 4 saddle
  • Urine drains
  • Bridle hooks
  • Huge bum pads

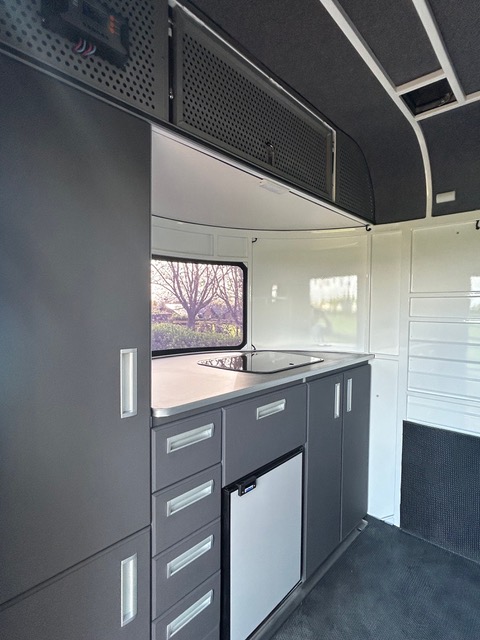

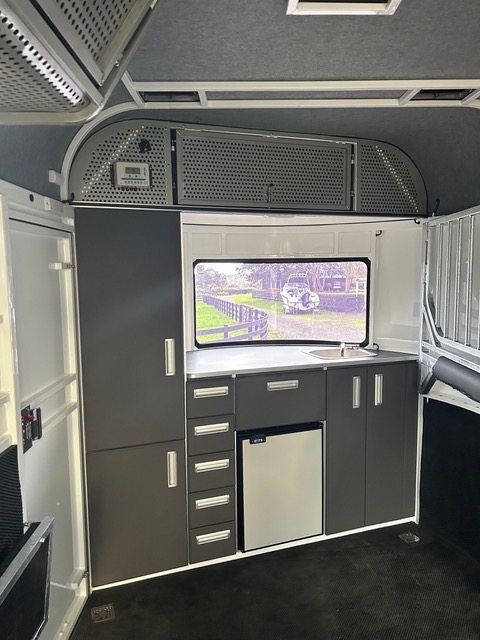

  • Bench unit with sink and tap
  • Outside tap
  • Underbench cupboards with shelving
  • Huge fully enclosed side cover rack
  • Sureflow 30psi pump and filter
  • Insulated roof
  • 3 LED internal lights
  • Sliding side windows with insect mesh and grills

Legacy ALX2 Optional Extras:

Fiamma Awning / Privacy Room
Awning Lights
Prestige Power Pack (includes cellphone charger, air compressor)
Hay Storage options
Cameras – internal and reversing
Logos of your choice
Solar Panels
Gas cooker
Hot Water Heater
Drawbar Storage


Prestige Trailers Colour Chart :
